visualControl()v4.0.292

warning

Preview feature: A few issues are known, and filed under this issue.

Creates a control in the right sidebar of the Remotion Studio that allows you to change a value.

Useful for if you have a hardcoded constant that you want to quickly find the optimal value for.

Example​

Consider you have a value rotation that you want to find the optimal value for:

A simple composition
tsx
import {useVideoConfig} from 'remotion';

const MyComp: React.FC = () => {
  const rotation = 180;

  return <div style={{rotate: `${rotation}deg`}}>Hello</div>;
};

Instead of changing the value of rotation in the code, you can create a control in the right sidebar of the Remotion Studio that allows you to change the value:

Creating a visual control with the name 'rotation'
tsx
import {visualControl} from '@remotion/studio';

const MyComp: React.FC = () => {
  const rotation = visualControl('rotation', 180);

  return <div style={{rotate: `${rotation}deg`}}>Hello</div>;
};

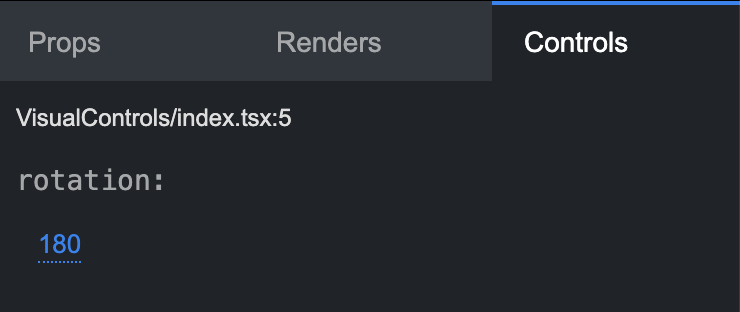

Now, in the right sidebar of the Remotion Studio, you will see a control with the name rotation and a slider to change the value.

Now you can change the value as you please, until you have found the optimal value.

Once you are happy with the value, you can save it back to the code by clicking the save button in the right sidebar.

Defining a schema​

Only primitive values (string and number) automatically infer the type of the control.

If you want to define a more complex schema, you can do so by passing a Zod schema as the third argument.

Editing an object
tsx
import {z} from 'zod';

const data = visualControl(
  'my-data',
  {
    rotation: 180,
    text: 'Hello',
  },
  z.object({
    rotation: z.number(),
    text: z.string(),
  }),
);

See: Visual Editing

Editing a color
tsx
import {visualControl} from '@remotion/studio';
import {zColor} from '@remotion/zod-types';

const color = visualControl('my-color', '#fff', zColor());

See: zColor()

Editing a matrix
tsx
import {visualControl} from '@remotion/studio';
import {zMatrix} from '@remotion/zod-types';

const matrix = visualControl('my-matrix', [1, 2, 3, 4], zMatrix());

See: zMatrix()

When to use​

  • If you want to create configuration options, use the Props Editor.
  • If you want to quickly find the optimal value for a hardcoded constant, use visualControl().

Important to know​

The saving feature works only if the first argument of the visualControl() function is static, because static analysis is performed on the source file. The following will not work:

❌ This is not possible
tsx
// ❌ Not possible to use string interpolation
const name = 'my-data';
const data = visualControl(`rotation-${name}`, 180);

// ❌ Not possible to use a variable
const idOutside = 'rotation-my-data';
const dataOutside = visualControl(idOutside, 180);

At the moment, unsaved values are not applied when rendering the video, even if the preview shows them. Save the values before rendering.

Controls may not be automatically remove themselves when you remove them from your code.
